Huawei Smart Precision Air Conditioning SLIDER Air Conditioner NetCol8000 A100DM22N2R120E0

Name: Huawei Smart Precision Air Conditioning SLIDER Air Conditioner NetCol8000 A100DM22N2R120E0
Brand: for HUAWEI
SKU: NetCol8000-A100DM22N2R120E0, NetCol8000-A100DM22N2R120E0
Price: 9 USD
Availability: InStock
Rating: 5 (136 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: for HUAWEI

Model Number: NetCol8000-A100DM22N2R120E0, NetCol8000-A100DM22N2R120E0

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: $9,500.00/pieces 2-99 pieces

Get Best Price

Product Details

Product Description

Highlight:

Display Type:	TFT	Screen Resolution:	1280x720
Feature:	Touch Screen	Operation System:	Android
Camera:	No Camera	Use:	Universal
Screen:	≥5.0"	Design:	SLIDER
Private Mold:	NO	Installation Method:	Vertical
Cooling Method:	Air-cooled	Power:	70kW
Application:	High Speed Concalation	Air Supply Method:	Downward Air Supply
Full Load Current:	21.3A	External Dimensions:	1980H*2280W"890D
Height:	365kg	PoweSupply:	Single PoweSupply

Display Type:	TFT
Screen Resolution:	1280x720
Feature:	Touch Screen
Operation System:	Android
Camera:	No Camera
Use:	Universal
Screen:	≥5.0"
Design:	SLIDER
Private Mold:	NO
Installation Method:	Vertical
Cooling Method:	Air-cooled
Power:	70kW
Application:	High Speed Concalation
Air Supply Method:	Downward Air Supply
Full Load Current:	21.3A
External Dimensions:	1980H*2280W"890D
Height:	365kg
PoweSupply:	Single PoweSupply

Huawei Smart Precision Air Conditioning SLIDER Air Conditioner NetCol8000 A100DM22N2R120E0

PRODUCT DESCRIPTION

Precision Air Conditioner for Huawei Room Level Chilled Water Intelligent Temperature Control Equipment

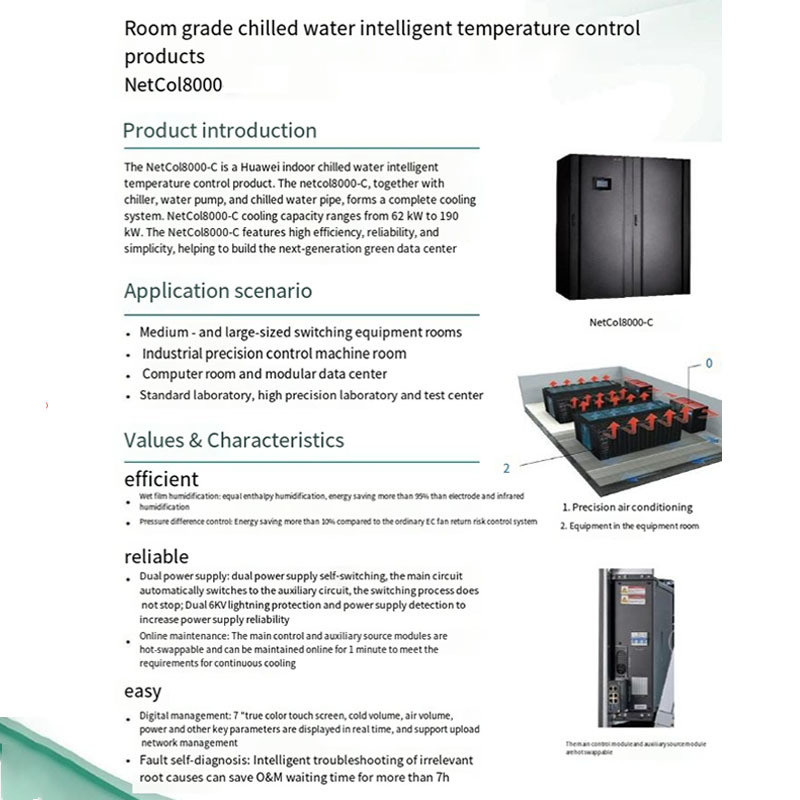

NetCol8000 is a room level chilled water intelligent temperature control product launched by Huawei, usually combined with chillers, water pumps, chilled water pipelines, etc. to form a complete refrigeration system. The NetCol8000 cooling capacity range can cover various cooling capacity ranges from 62 kW to 190 kW. NetCol8000 features high efficiency, reliability, and simplicity, helping to build the next generation of green data centers.

Product Introduction

NetCol8000-C is a room level chilled water intelligent temperature control product launched by Huawei, usually combined with chillers, water pumps, chilled water pipelines, etc. to form a complete refrigeration system. The NetCol8000-C cooling capacity range can cover various cooling capacity ranges from 62 kW to 190 kW. NetCol8000-C features high efficiency, reliability, and simplicity, helping to build the next generation of green data centers.

Product Features

Adaptive energy-saving control system: Description of system temperature and humidity control logic, recommended based on the temperature and humidity control range used in the region of use, recording of non energy-saving operating conditions by the unit and correction of operating settings energy-saving algorithm: single machine energy-saving mode, partial load energy efficiency ratio increased by 26%; Group avoidance of competition and efficiency algorithms, achieving energy savings of over 30% in refrigeration systems

Reliable: Multiple system protection measures, including: compressor failure, airflow failure, compressor high and low pressure failure, temperature and humidity exceeding limits and other steel structure frames. The high-quality components used in the double-layer composite panel embedded with fire-resistant, sound-absorbing and heat-insulating cotton have undergone rigorous testing and certification

Easy to use: Full frontal maintenance, supports wall and side by side installation, requires low maintenance space for expert level management, and clearly presents the cause of faults and repair strategy time

Application scenarios

·Medium and large exchange rooms Industrial precision control room Computer rooms and modular data centers Standard laboratories, high-precision laboratories, and testing centers

Value&Characteristics

Efficient

Wet film humidification: Equal enthalpy humidification, saving over 95% energy compared to electrode and infrared humidification Pressure difference control: Compared to ordinary EC fan supply and return air control, it saves more than 10% energy

reliable

Dual power supply: The dual power supply automatically switches, and when the main circuit loses power, it automatically switches
to the auxiliary circuit without stopping the switching process. The dual 6KV lightning protection and power supply detection
increase the reliability of power supply Online maintenance: Hot swappable design for main control and auxiliary source modules,
1-minute online maintenance to meet continuous cooling requirements

simple

Digital management: 7 "true color touch screen, real-time display of key parameters such as cooling capacity, air volume, power,etc., and support for uploading to network management Fault self diagnosis: Intelligent elimination of irrelevant fault root
causes, which can save operation and maintenance waiting time of more than 7 hours

TECHNICAL SPECIFICATION

item	value
Parameters	NetCol8000
Model	A100DM22N2R120E0
Brand	HUA WEI
location	indoor Unit
Air supply method	Downward Air Flow
Pipe	Down Pipe
Powe Supply	Single Powe Supply
Operating Temperature	Heating&Humidifier
Dimensions (W x D)	980H*2280W"890D
Packaging	international Packaging
QTY	1PC
