Wired LAN Network ONU OptiXstar W626E featuring Internal Antenna

Product Details

Place of Origin: Guangdong, China

Brand Name: other

Model Number: OptiXstar W626E

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Price: $44.00/units 2-149 units

Packaging Details: Carton or wooden box

Supply Ability: 1000 Unit/Units per Month

Get Best Price
Highlight:
Type:
ONU
Use:
OLT ONU ODN ONT
Warranty Time:
1 Year
Network:
Wired LAN, TCP, Ip
Model:
OptiXstar W626E
Network Side Interface:
GPON
User Side Interface:
1 Phone+4 Gigabit+1 USB+2.4G&5G Wi Fi 6
Optical Interface:
SC/UPC
Pilot Lamp:
Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
Antenna:
Internal Antenna
Whole Machine Power Supply:
11V DC ~14V DC, 1.5A
Wi Fi Specifications:
Speed: 574 Mbps (2.4GHz); 2402 Mbps (5GHz)
Equipment Size (width * Deep *High):
237.5mm * 172.5mm* 105mm
Weight:
650g
Port:
TIANJIN
Type:
ONU
Use:
OLT ONU ODN ONT
Warranty Time:
1 Year
Network:
Wired LAN, TCP, Ip
Model:
OptiXstar W626E
Network Side Interface:
GPON
User Side Interface:
1 Phone+4 Gigabit+1 USB+2.4G&5G Wi Fi 6
Optical Interface:
SC/UPC
Pilot Lamp:
Power/PON/LOS/LAN/TEL/USB/WLAN/WPS
Antenna:
Internal Antenna
Whole Machine Power Supply:
11V DC ~14V DC, 1.5A
Wi Fi Specifications:
Speed: 574 Mbps (2.4GHz); 2402 Mbps (5GHz)
Equipment Size (width * Deep *High):
237.5mm * 172.5mm* 105mm
Weight:
650g
Port:
TIANJIN
Wired LAN Network ONU OptiXstar W626E featuring Internal Antenna
Product Description

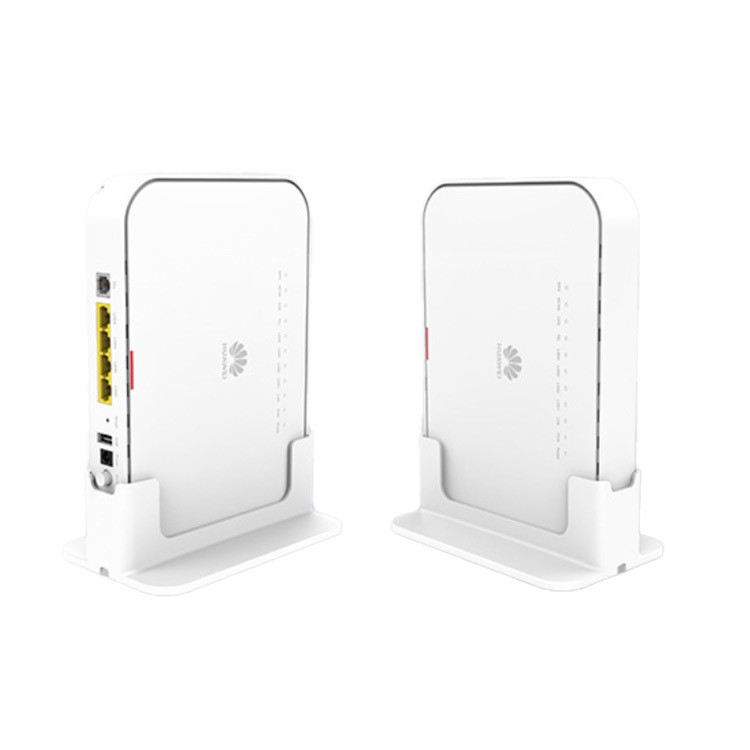

Huawei OptiXstar W626E
OptiXstar W626E is a GPON Gigabit uplink Wi Fi 6 ONU that provides 4 GE ports, 1 POTS voice port, 1 USB port, and 2.4G&5G Wi Fi 6. Support multiple installation methods such as wall hanging and desktop installation. It can be used for wired access, voice access, and WiFi coverage in industries such as hotels, apartments, schools, enterprises, and governments.
Wired LAN Network ONU OptiXstar W626E featuring Internal Antenna 0
OptiXstar W626E Technical parameters:
1. Upstream network side interface: GPON; 2. Downlink user side interface: ≥ 4GE+1POTS+1USB 3. Multicast feature: Supports IGMP
v2/v3 snooping&proxy, MLDv1/MLDv2 snooping; 4. Working environment: The maximum power consumption of the entire machine is ≥ 18w,
with built-in antenna, a wide temperature range of 0 ° C to+40 ° C, and strong adaptability to the environment; 5. Wi Fi
intelligent sharing: Portal, 802.1x authentication based on Soft GRE Wi Fi; 6. Business distribution: certification free,
XML/OMCI/TR069; 7. Intelligent operation and maintenance: Support OLT initiated rogue ONT detection and isolation, call
simulation/internal and external line testing/PPPoE simulation/DHCP simulation; 8. Security authentication: ★ Supports 802.1x, SPI
firewall, MAC filtering/IP address filtering, and prevents DoS attacks;
Specification
Wired LAN Network ONU OptiXstar W626E featuring Internal Antenna 1
