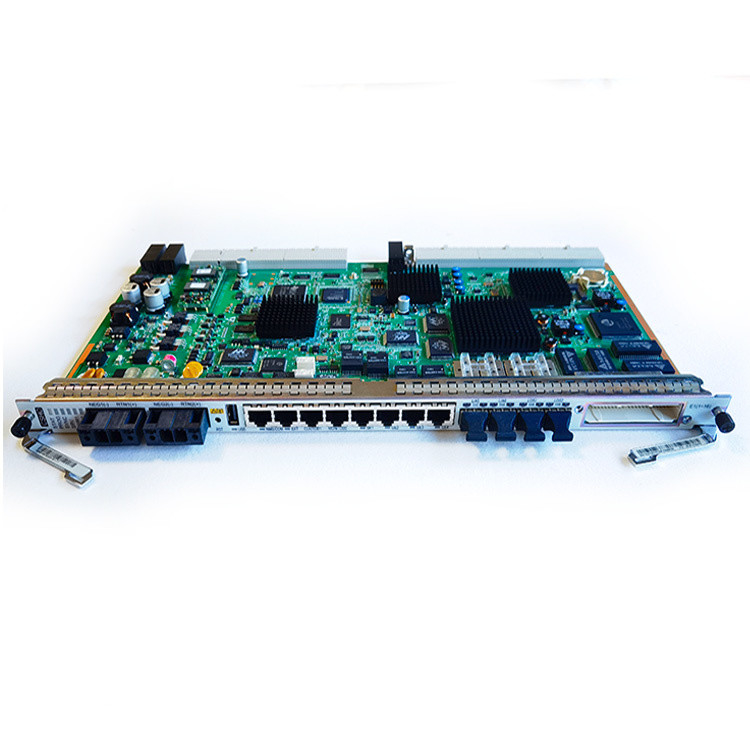

OptiX RTN950A main control board SLF1CSHO
16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) Hybrid main control switch board
Product Details
Place of Origin: Guangdong, China
Brand Name: HW
Model Number: SLF1CSHO 03021UDH
Payment & Shipping Terms
Price: $763.89/pairs 1-1 pairs
Packaging Details: Carton or wooden box
Type: |
Microwave |
Use: |
Telecommunications |
Warranty Time: |
12 Months |
Network: |
Wireless Lan, Ip, POE |
Product Name: |
Main Control Board |
Model: |
SLF1CSHO |
Describe: |
16*E1(TDM)/2*STM-1(SFP)/4*GE(RJ45)/2*GE(SFP) |
Code: |
03021UDH |
Applicable Host: |
RTN950A |
Outer Packaging Size: |
560*385*170 |
Inside Dimension: |
545*370*145 |
Weight: |
2.8KG |
Producer: |
Chinese Mainland |
Types Of: |
Wireless Microwave |
Type: |
Microwave |
Use: |
Telecommunications |
Warranty Time: |
12 Months |
Network: |
Wireless Lan, Ip, POE |
Product Name: |
Main Control Board |
Model: |
SLF1CSHO |
Describe: |
16*E1(TDM)/2*STM-1(SFP)/4*GE(RJ45)/2*GE(SFP) |
Code: |
03021UDH |
Applicable Host: |
RTN950A |
Outer Packaging Size: |
560*385*170 |
Inside Dimension: |
545*370*145 |
Weight: |
2.8KG |
Producer: |
Chinese Mainland |
Types Of: |
Wireless Microwave |
model | SLF1CSHO | ||||||
code | 03021UDH | ||||||
Frequency band | 6 ~ 42 GHz | ||||||
Modulation mode | QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM | ||||||
Maximum number of RFUs | Based on the RTN950A technical specifications | ||||||
describe | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) Hybrid main control switch board | ||||||
interface | E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o） ，10GE（o） | ||||||
Radio Frequency Mode | N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO | ||||||
characteristic | CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO | ||||||
weight | 2.8kg | ||||||
Carton size | 560 mm × 385 mm × 170 mm | ||||||
inside dimension | 545 mm × 370 mm × 145 mm | ||||||
RTN950A is suitable for the main control model | ||||||||
model | code | describe | ||||||
SLF1CSHO | 03021UDH | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) | ||||||
SLF2CSHO | 03022TLJ | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) | ||||||
SLF3CSHOF | 02312RPE | 4*GE(RJ45)+2*10GE(SFP+)+16*E1+2*GE/STM-1(SFP) | ||||||
