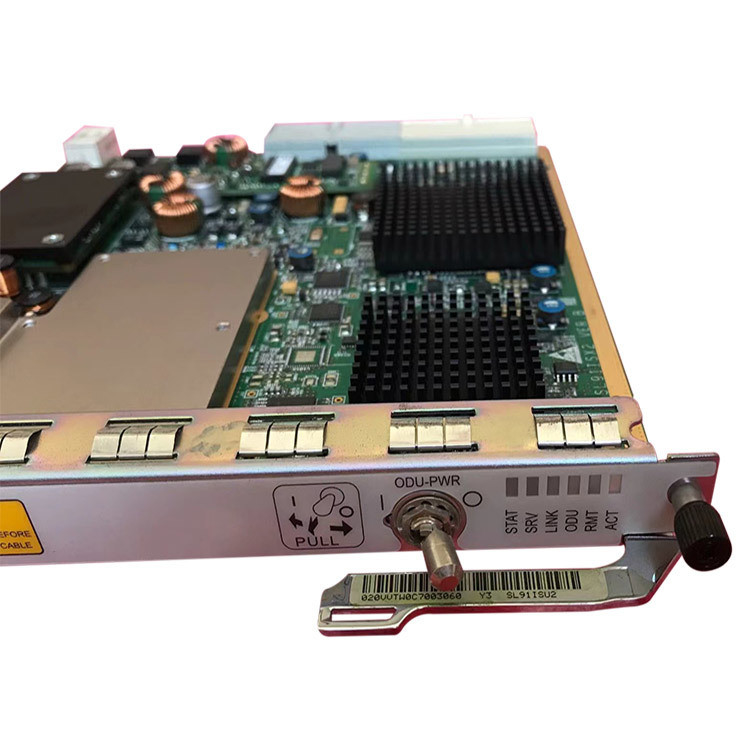

Product Details
Place of Origin: Chongqing, China
Brand Name: other
Model Number: SL91ISU2
Payment & Shipping Terms
Minimum Order Quantity: 2 units
Price: $208.00/units
Packaging Details: Carton or wooden box
Product Name: |
Main Control Board |
Model: |
SL91ISU2 |
Describe: |
Intermediate Frequency Board |
Code: |
020VVT |
Applicable Host: |
RTN950A |
Attribute: |
Wireless Microwave |
Inside Dimension: |
54*37*14 |
Weight: |
0.8KG |
Producer: |
Chinese Mainland |
Types Of: |
Wireless Microwave |
Product Name: |
Main Control Board |
Model: |
SL91ISU2 |
Describe: |
Intermediate Frequency Board |
Code: |
020VVT |
Applicable Host: |
RTN950A |
Attribute: |
Wireless Microwave |
Inside Dimension: |
54*37*14 |
Weight: |
0.8KG |
Producer: |
Chinese Mainland |
Types Of: |
Wireless Microwave |
model | SL91ISU2 | ||||||
code | 020VVT | ||||||
Frequency band | 6 ~ 42 GHz | ||||||
Modulation mode | QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM | ||||||
Maximum number of RFUs | Based on the RTN950A technical specifications | ||||||
describe | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) Hybrid main control switch board | ||||||
interface | E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o） ，10GE（o） | ||||||
Radio Frequency Mode | N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO | ||||||
characteristic | CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO | ||||||
weight | 2.8kg | ||||||
Carton size | 560 mm × 385 mm × 170 mm | ||||||
inside dimension | 545 mm × 370 mm × 145 mm | ||||||
RTN950A is suitable for the main control model | ||||||||
model | code | describe | ||||||
SLF1CSHO | 03021UDH | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) | ||||||
SLF2CSHO | 03022TLJ | 16 * E1 (TDM)/2 * STM-1 (SFP)/4 * GE (RJ45)/2 * GE (SFP) | ||||||
SLF3CSHOF | 02312RPE | 4*GE(RJ45)+2*10GE(SFP+)+16*E1+2*GE/STM-1(SFP) | ||||||
SLF1FAN | Cooling fan | |||||||
SL91ISU2 | 020VVT | Integrated intermediate frequency board | ||||||
