Product Details
Place of Origin: Guangdong, China
Brand Name: HW

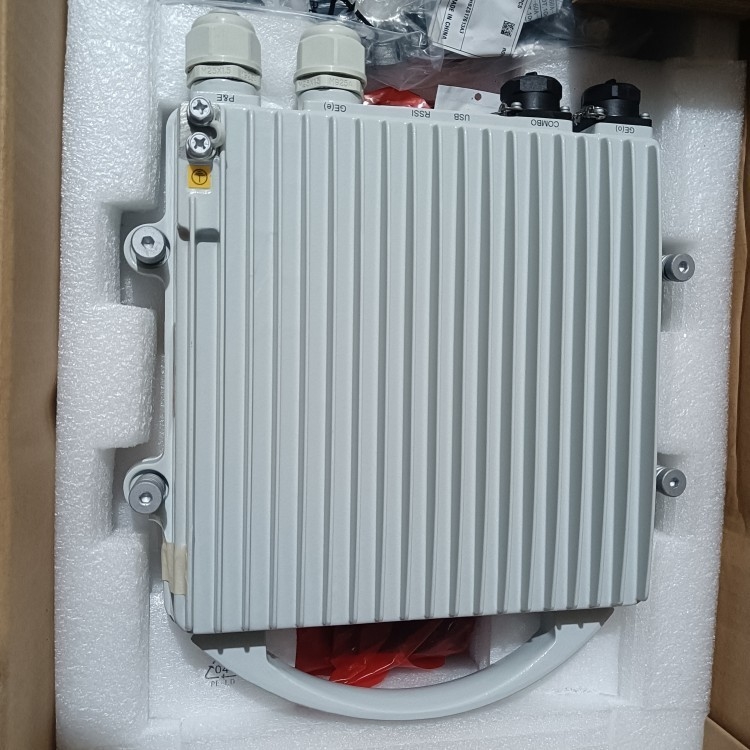

Model Number: RTN 380
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: $1,000.00 - $1,300.00/sets
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
RTN 380 |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
RTN 380 |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
Specifications | RTN 380A | RTN 380AX(DC+P&E) | RTN 380AXH | ||
Frequency | 71～76/81～86GHz | ||||
Channel Bandwidth | 62.5~/1000 MHz | 62.5~2000 MHz | 62.5~2000 MHz | ||
Max. Throughput | 7.5Gbps | 10Gbps | 10Gbps | ||
Modulations Schemes | BPSK~512QAM | BPSK~1024QAM | BPSK~1024QAM | ||
Service Interface | 2*10GE(SFP)+2*GEe | 3*10GE(SFP)+1*GEe | 4*10GE(SFP)+1*GEe | ||
Tx Power @QPSK | 18 dBm | 18 dBm | 26 dBm | ||
Super Dual Band | Yes | Yes | Yes | ||
L3 VPN | No | Yes | Yes | ||
eCPRI Support | Not support | Support 10G eCPRI | Support 10G eCPRI | ||
XPIC Support | Not support | Yes | Yes | ||
Power Consumption | 39W (typical) | 49W (typical) | 69W (typical) | ||
Dimensions | 265*285*73mm | 265*320*73 mm | 265*320*83 mm | ||
Power Supply | P&E | DC + P&E with Redundancy | DC + P&E with Redundancy | ||
