Product Details
Place of Origin: Guangdong, China, china
Brand Name: other, other
Model Number: SLJCSHRFA02
Payment & Shipping Terms
Minimum Order Quantity: 2 units
Price: $4,000.00/units >=2 units
Packaging Details: carton
Supply Ability: 8000 Unit/Units per Day
Product Name: |

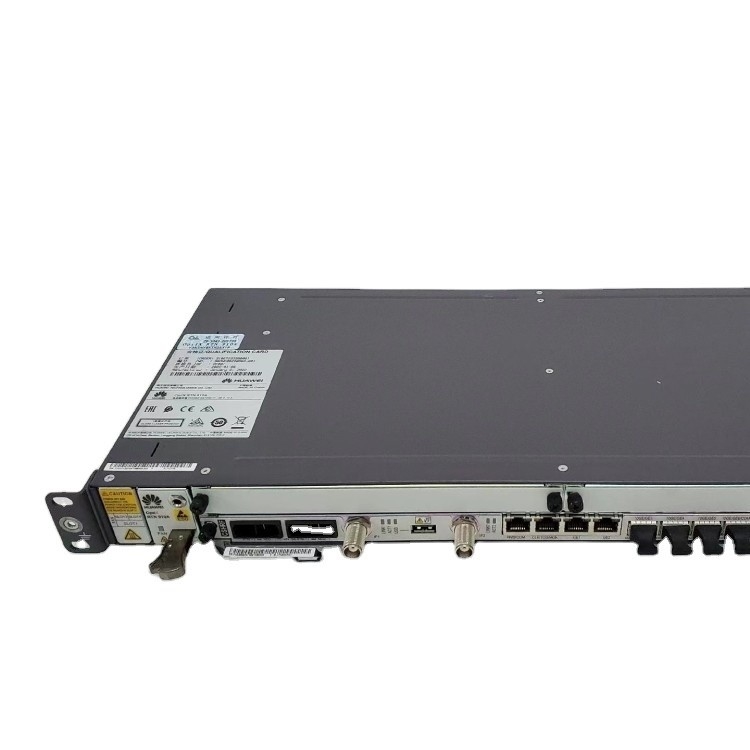

RTN910A Main Control Board |
Application: |
RTN910A |
Color: |
Blue |
Model: |
SLJCSHRFA02 |
Code: |
05022ULC |
Version: |
V100R020C10SPH301 |
Voltage: |
48v |
Nature: |
Veneer |
Product Name: |
RTN910A Main Control Board |
Application: |
RTN910A |
Color: |
Blue |
Model: |
SLJCSHRFA02 |
Code: |
05022ULC |
Version: |
V100R020C10SPH301 |
Voltage: |
48v |
Nature: |
Veneer |
Network layer | Suitable for: access layer and aggregation layer | ||||||
Frequency band | 6 ~ 42 GHz | ||||||
Channel spacing | 3.5/ 7/14/28/40/56/112 MHz | ||||||
Bandwidth | Determine based on ODU bandwidth | ||||||
Modulation mode | QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM | ||||||
Maximum number of RFUs | Based on the RTN910A technical specifications | ||||||
RF direction | 6 | ||||||
Air port capacity | Single carrier 1166~2500 Mbit/s (non XPIC) | ||||||
Exchange capacity | 90 Gbit/s (SLJCSHRFA02), 10 Gbit/s (SLJCSHRFA01) | ||||||
TDM交叉容量 | 32×32 VC-4 | ||||||
链路聚合 | 2-4 | ||||||
接口类型 | E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o） ，10GE（o） | ||||||
发射功率 @QPSK | Based on the RTN910A technical specifications | ||||||
超级双频 | Based on the RTN910A technical specifications | ||||||
L3 VPN | Based on the RTN910A technical specifications | ||||||
支持eCPRI | Based on the RTN910A technical specifications | ||||||
射频配置方式 | N+0 N×（1+0） 1+1 N+1 XPIC 2 × 2 CA 4 ×4 MIMO | ||||||
功能 | Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819) | ||||||
业务类型 | Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE | ||||||
关键特性 | CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO | ||||||
天线 | Parabolic antenna: 0.3m~3.7m | ||||||
IDU重量 | 5.4 kg（1+0） 6.2 kg（1+1） | ||||||
IDU规格 | 442 mm × 220 mm × 88 mm | ||||||
环境 | Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100% | ||||||
电源 | -38.4 V~-57.6 V | ||||||
证书 | CE、RCM、 FCC、IC、ETL、MCMC | ||||||
