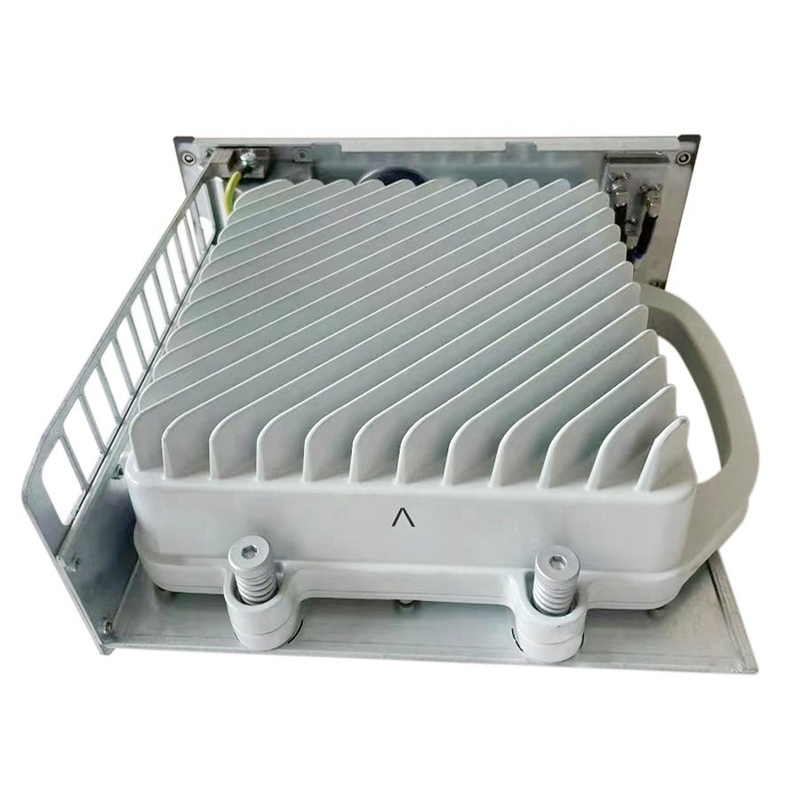

0102310VQ J Model R110000SHA Integrated Wireless Microwave Function Module for RTN980L

Name: 0102310VQ J Model R110000SHA Integrated Wireless Microwave Function Module for RTN980L
Brand: other
SKU: R110000SHA
Price: 1 USD
Availability: InStock
Rating: 4.7 (100 reviews)

Product Details

Place of Origin: Guangdong, China

Brand Name: other

Model Number: R110000SHA

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Price: $1,200.00/units 2-19 units

Packaging Details: Carton or wooden box

Supply Ability: 1000 Unit/Units per Month

Get Best Price

Product Details

Product Description

Highlight:

Product Name:	IP Microwave	Application:	Long Distance Integrated Wireless Microwave
Model:	XMC-LH-11G-SD-High	Code:	02310VQJ
TX:	RF Transmission Interface	Main RX:	RF Receiving Interface
IF:	Intermediate Frequency Interface	RSSI:	RSSI Testing Interface
Operating Frequency:	11.199~11.745 11.199~11.745	Modulation Mode:	PSK/16QAM/32QAM/64QAM/128QAM/256QAQM/512QAM/ 1024QAM/2048QAM
Port:	Tianjin

Product Name:	IP Microwave
Application:	Long Distance Integrated Wireless Microwave
Model:	XMC-LH-11G-SD-High
Code:	02310VQJ
TX:	RF Transmission Interface
Main RX:	RF Receiving Interface
IF:	Intermediate Frequency Interface
RSSI:	RSSI Testing Interface
Operating Frequency:	11.199~11.745 11.199~11.745
Modulation Mode:	PSK/16QAM/32QAM/64QAM/128QAM/256QAQM/512QAM/ 1024QAM/2048QAM
Port:	Tianjin

0102310VQ J Model R110000SHA Integrated Wireless Microwave Function Module for RTN980L

Product Video

Product display

RTN980L

code Model Basic configuration

IDU

02352571 SLAK00RACK02 RTN 980L final chassis (-48V)

03023WUN SLB2CSHNU OptiX RTN 980 SLB2CSHNU Nodal Main Control Switch Board

03024QLM SL91ISM8 Versatile Dual IF Board

IDU Including main control

02312GGJ SLBMSITE106 RTN 980 basic configuration unit dual main control (2 * CSHNU) with IDU installation accessories

RFU

Functional module - RTN XMC-LH-11G-SD-High site-11199MHz-11745MHz-10675MHz-11215MHz-Without doc-WR-75, H01 02310VQJ R110000SHA

Basic unit

03020RBJ SL9D0IFU2A01 Hybrid IF board

03020RES SL9D000AUX01 Auxiliary interface board

03020VVT SL91ISU2 TDM/Hybrid/Packet integrated intermediate frequency board

03020VVW SL91ISX2 TDM/Hybrid/Packet Integrated XPIC Intermediate Frequency Single Board

03021PFK SL91ISV3 Integrated multifunctional intermediate frequency board

88031FHQ SL9S00XPIC01 ISV3 XPIC Kit (per IF)

Business Interface Board Unit

03053149 SL9D00EM6F01 4 * FE (RJ45)/2 * GE (SFP) Fast Ethernet/Gigabit Ethernet processing board with switching function(1000BaseSX,LC)

03053443 SL92ML1A 16-way Smart E1 electrical interface processing board (75ohm)
03053441 SL91MD1A 32-way Smart E1 electrical interface processing board (75ohm)

03020SXA SL9D0SP3SB01 16 * E1/75 Ohm Branch Board

03020UGG TNHD0SP3DB01 32 * E1/75ohm electrical interface board

03053102 SL9D00SL1D02 2xSTM-1 optical interface board (S-1.1, LC/PC)

Value-adding functions

88031EFEL SL6ETHC09 Link Transmission Capacity License,500M

Basic software (embedded installation)

88031HMX SL8S00V1R501 Basic software package, V100R005 (per subrack

IF cable

25070149 RF CABLE-5D Coaxial Cable ,Copper-clad Aluminium Wire,50ohm,7.6mm,4.8mm,1.8mm,Black,5D

Installing cables

RTN900-16E1 cable

04120372 SLAC0016E105 Relay cable -5m-75ohm-16E1-1.6mm - (Anea 96 female III) - (SYFVZP75-1.1/0.26 * 32 (S)) - positive 45 degrees

Fiber optic connectors Optical Network Product Line - External Set of Fiber Optics (LC-LC)

14130199 SS-OP-D-LC-S-10 Jump Fiber LC/PC-LC/PC Single Mode G.652D-2mm-10m-PVC Yellow 14130222SS-OP-D-LC-M-10 Jump Fiber LC/PC-LC/PC Multi Mode A1b-2mm-10m-PVC Orange

annex

25050014 C0000FE00 Symmetrical twisted pair cable -100ohm - Ultra Class V wire -0.51mm -24AWG 8-core - PANTONE 430U - with plug 14080082

Products Description

Network layer	Suitable for: access layer and aggregation layer
Frequency band	6 ~ 42 GHz
Channel spacing	3.5/7/14/28/40/56 MHz (6/7/8/10/11/13/15/1 8/23/26/28/32/38 GHz) 7/14/28 MHz (10.5GHz)
Bandwidth	Determine based on ODU bandwidth
Modulation mode	QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，2048QAM，4096QAM
Maximum number of RFUs	XMC-LH RFU:10 XMC-LH 5D RFU:5
RF direction	14
Air port capacity	22Gbps
Exchange capacity
TDM交叉容量
Link Aggregation	2-4
Interface type	E1，STM-1（e/o），FE（e/o），GE（e/o），2.5GE（o），10GE（o）
Transmission power @ QPSK	Based on the RTN950A technical specifications
Super Dual Band	Based on the RTN980 technical specifications
L3 VPN	Based on the RTN980 technical specifications
Support eCPRI	Based on the RTN980 technical specifications
RF configuration method	1+0 unprotected configuration N+0 unprotected configuration 1+1 protection configuration N+1 protection configuration (N ≤ 7) XPIC configuration
Function	Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819)
Business type	Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE
Key Features	CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO
Antenna	Parabolic antenna: 0.3m~3.7m
IDU weight	15.4KG
IDU size	442mm×220mm×225mm
Environment	Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100%
Power supply	-38.4 V~-57.6 V
Authenticated document	CE、RCM、 FCC、IC、ETL、MCMC
