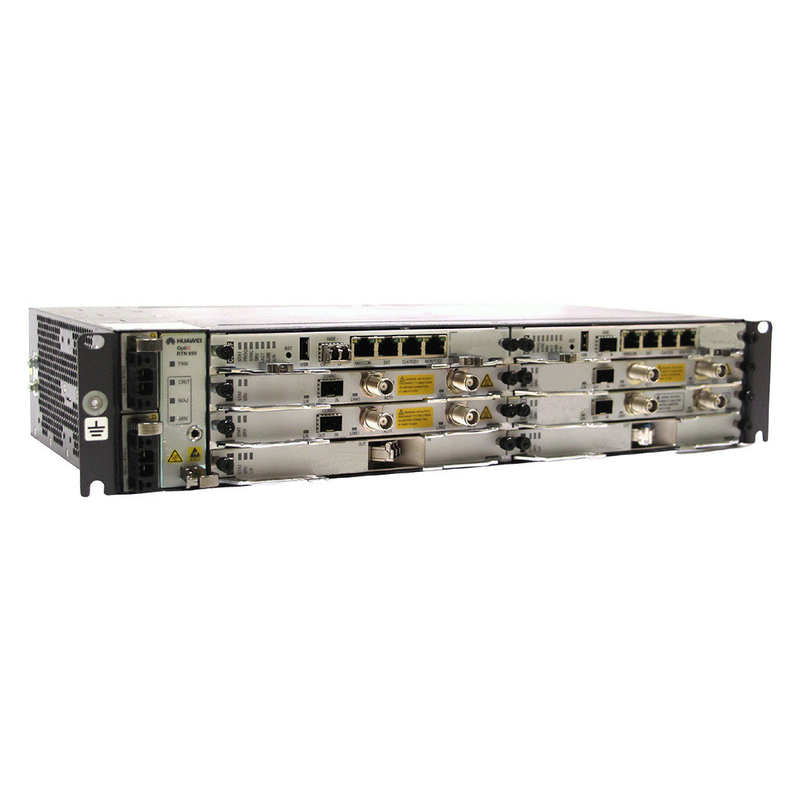

02113174 SL9K2URACK01 RTN 950 final chassis (-48V)
Product Details
Place of Origin: Guangdong, China
Brand Name: other
Model Number: RTN950
Payment & Shipping Terms
Minimum Order Quantity: 2 pairs
Price: $323.50/pairs 2-49 pairs
Packaging Details: Carton or wooden box
Supply Ability: 500 Carton/Cartons per Day
Model: |
SL9K2URACK01 RTN 950 Final Cabinet (-48V) |
Frequency Band: |
L6/U6/7/8/11GHz |
Channel Spacing: |
28/40/56/80/112MHz |
Modulation Mode: |
QPSK Strong~4096QAM |
Intermediate Frequency Board: |
SL91ISM6 SL91ISM8 SL91ISV3 |
Interface Type: |
E1,T1,STM-1(e/o),FE(e/o),GE(e/o), 2.5GE(o) ,10GE(o) |
IDU Weight: |
5.4 Kg(1+0) 6.2 Kg(1+1) |
IDU Size: |
442 Mm *220 Mm *88 Mm |
Maximum Number Of RFUs: |
XMC-LH RFU:10 XMC-LH 5D RFU:5 |
RF Configuration Method: |
N+0 N*(1+0) 1+1 N+1 XPIC |
Port: |
Tianjin |
Model: |
SL9K2URACK01 RTN 950 Final Cabinet (-48V) |
Frequency Band: |
L6/U6/7/8/11GHz |
Channel Spacing: |
28/40/56/80/112MHz |
Modulation Mode: |
QPSK Strong~4096QAM |
Intermediate Frequency Board: |
SL91ISM6 SL91ISM8 SL91ISV3 |
Interface Type: |
E1,T1,STM-1(e/o),FE(e/o),GE(e/o), 2.5GE(o) ,10GE(o) |
IDU Weight: |
5.4 Kg(1+0) 6.2 Kg(1+1) |
IDU Size: |
442 Mm *220 Mm *88 Mm |
Maximum Number Of RFUs: |
XMC-LH RFU:10 XMC-LH 5D RFU:5 |
RF Configuration Method: |
N+0 N*(1+0) 1+1 N+1 XPIC |
Port: |
Tianjin |
code | Model | Basic configuration | |||||
IDU main box | |||||||
02113174 | SL9K2URACK01 | RTN 950 final chassis (-48V) | |||||
Basic unit | |||||||
03020RAR | SL91CSH | Hybrid main control switch board | |||||
03020RBJ | SL9D0IFU2A01 | Hybrid IF board | |||||
03020RES | SL9D000AUX01 | Auxiliary interface board | |||||
03020VVT | SL91ISU2 | TDM/Hybrid/Packet integrated intermediate frequency board | |||||
03020VVW | SL91ISX2 | TDM/Hybrid/Packet Integrated XPIC Intermediate Frequency Single Board | |||||
03021PFK | SL91ISV3 | Integrated multifunctional intermediate frequency board | |||||
88031FHQ | SL9S00XPIC01 | ISV3 XPIC Kit (per IF) | |||||
Business Interface Board Unit | |||||||
03053149 | SL9D00EM6F01 | 4 * FE (RJ45)/2 * GE (SFP) Fast Ethernet/Gigabit Ethernet processing board with switching function (1000BaseSX, LC) | |||||
03021CCY | SL9D00EM6TA1 | 4 * FE (RJ45)+2 * GE (RJ45) supports 1588v2 fast Ethernet/Gigabit Ethernet processing board with switching function | |||||
03053898 | SL9D00EM6FA1 | 4 * FE (RJ45)+2 * GE (SFP) supports 1588v2 fast Ethernet/Gigabit Ethernet processing board with switching function (1000BaseSX, LC) | |||||
03053443 | SL92ML1A | 16-way Smart E1 electrical interface processing board (75ohm) | |||||
03053441 | SL91MD1A | 32-way Smart E1 electrical interface processing board (75ohm) | |||||
03020TFB | SL9D00EFP800 | 8-way RJ45 10/100M Ethernet processing board with switching and EoPDH functions | |||||
03020SXA | SL9D0SP3SB01 | 16 * E1/75 Ohm Branch Board | |||||
03020UGG | TNHD0SP3DB01 | 32 * E1/75ohm electrical interface board | |||||
03021FLY | SL91TCU6 | OptiX RTN900-SL91TCU6-6 * E1 adapter board | |||||
03054014 | SL91SL1DA02 | 2xSTM-1 optical interface board (S-1.1, LC/PC) | |||||
03053102 | SL9D00SL1D02 | 2xSTM-1 optical interface board (S-1.1, LC/PC) | |||||
03053103 | SL9D00SL1D03 | 2xSTM-1 optical interface board (L-1.1, LC/PC) | |||||
03021PKH | SL91EG4P | 2*GE(SFP/RJ45)+2*GE(RJ45/Power over Ethernet)Gigabit Ethernet Board with switch function | |||||
Network layer | Suitable for: access layer and aggregation layer | ||||||
Frequency band | L6/U6/7/8/11GHz | ||||||
Channel spacing | 28/40/56/80/112MHz | ||||||
Bandwidth | Determine based on ODU bandwidth | ||||||
Modulation mode | QPSK Strong，QPSK，16QAM Strong，16QAM，32QAM， 64QAM，128QAM，256QAM，512QAM，512QAM Light， 1024QAM，1024QAM Light，2048QAM，4096QAM | ||||||
Maximum number of RFUs | Based on the RTN950 technical specifications | ||||||
RF direction | 12 | ||||||
Air port capacity | Single carrier 1097~1389Mbit/s (non XPIC) | ||||||
Exchange capacity | 120Gbit/s （CSHLF） | ||||||
TDM交叉容量 | 32×32 VC-4 | ||||||
Link Aggregation | 2-4 | ||||||
Interface type | E1，T1，STM-1（e/o），FE（e/o），GE（e/o）， 2.5GE（o） ，10GE（o） | ||||||
Transmission power @ QPSK | Based on the RTN950A technical specifications | ||||||
Super Dual Band | Based on the RTN950 technical specifications | ||||||
L3 VPN | Based on the RTN950 technical specifications | ||||||
Support eCPRI | Based on the RTN950 technical specifications | ||||||
RF configuration method | N+0 N×（1+0） 1+1 N+1 XPIC | ||||||
Function | Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, LDP Support for flow control (IEEE 802.3x) Support Link Aggregation Group (IEEE 802.3ad LAG and L1 LAG) RMON (IETF RFC 2819) | ||||||
Business type | Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated line services, Ethernet aggregation services, E-LAN private network services (VPLS, representing virtual private network services) L3VPN, L2VPN (VLL), CES, MCE | ||||||
Key Features | CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, SDB, L3VPN, CA, MIMO | ||||||
Antenna | Parabolic antenna: 0.3m~3.7m | ||||||
IDU weight | 5.4 kg（1+0） 6.2 kg（1+1） | ||||||
IDU size | 442 mm × 220 mm × 88 mm | ||||||
Environment | Temperature: IDU -5 °C ~+60 °C ； ODU -33 °C ~ +55 °C Humidity: IDU 5%~95%； ODU 5%~100% | ||||||
Power supply | -38.4 V~-57.6 V | ||||||
Authenticated document | CE | ||||||
