Product Details
Place of Origin: Beijing, China, guangdong, China
Brand Name: HW

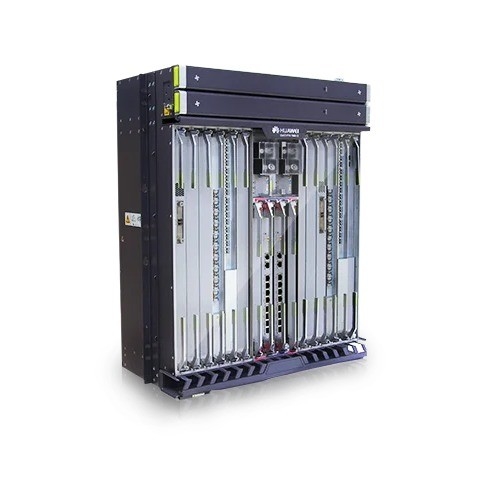

Model Number: PTN 7900E-24
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $11,005.00/pieces >=2 pieces
Packaging Details: 1,Carton packing or wooden case packing according to customer requirements
2,Sufficient protective materials are added to the packing box to effectively prevent the product from being damaged due to turbulence during transportation.
Supply Ability: 1000 Carton/Cartons per Day
Type: |
Enterprise Router |
Use: |
PTN 7900E |
Products Status: |
Stock |
Function: |
SNMP, VLAN Support |
WAN Ports: |
1 |
Weight (lb/kg) Fully Configured: |
95 Kg |
Throughput: |
1.44 Tbps |
Operating Temperature: |
32° To 104° F (0° To 40° C) |
Traffic Analysis: |
NetStream |
VLAN: |
Adding Access, Trunk, And Hybrid Interfaces To VLANs/Default VLAN |
Dimensions (H X W X D): |
496 X 310 X 1385 Mm (31U) |
Type: |
Enterprise Router |
Use: |
PTN 7900E |
Products Status: |
Stock |
Function: |
SNMP, VLAN Support |
WAN Ports: |
1 |
Weight (lb/kg) Fully Configured: |
95 Kg |
Throughput: |
1.44 Tbps |
Operating Temperature: |
32° To 104° F (0° To 40° C) |
Traffic Analysis: |
NetStream |
VLAN: |
Adding Access, Trunk, And Hybrid Interfaces To VLANs/Default VLAN |
Dimensions (H X W X D): |
496 X 310 X 1385 Mm (31U) |
Height [mm] | 1385 mm | ||||
Depth [mm] | 310 mm | ||||
Wide [mm] | 496 mm | ||||
Chassis height [U] | 31U | ||||
Weight without packaging (full configuration) | 223.2 kg (492.1 lb) | ||||
Weight without packaging | 95 kg (209 lb) | ||||
Typical power consumption (with configuration) [W] | Typical configuration 1 Power consumption: 1728 W Configuration: 2*200GE+2*100GE+8*50GE+8*10GE+32GE | ||||
Power supply mode | DC | ||||
Input voltage range [V] | • -48 V DC: -40 V to -57.6 V • -60 V DC: -48 V to -72 V | ||||
Rated input voltage [V] | –48 V/–60 V | ||||
Maximum input current [A] | 60 A | ||||
Number of service board slots | 24 | ||||
Number of slots | 40 | ||||
Redundant Switch fabrics | 3+1 | ||||
Redundant fans | When one of fans in the fan tray assembly is faulty, the system can remain operational for 96 consecutive hours at a temperature ranging from -5°C to 40°C. | ||||
Redundant CXPs | 1+1 | ||||
Redundant power supply | 2+2, 3+3, 4+4 | ||||
Long-term operating temperature | -5°C to 45°C(23.0°F to 113.0°F) | ||||
Storage temperature | -40°C to 70°C(-104.0°F to 158.0°F) | ||||
Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing | ||||
Storage relative humidity [RH] | 5% RH to 100% RH, non-condensing | ||||
Long-term operating altitude | ≤ 4000 m(≤ 13123.36 ft.) | ||||
Storage altitude | < 5000 m(< 16404.2 ft.) | ||||
