Product Details
Place of Origin: Beijing, China, guangdong, China
Brand Name: HW

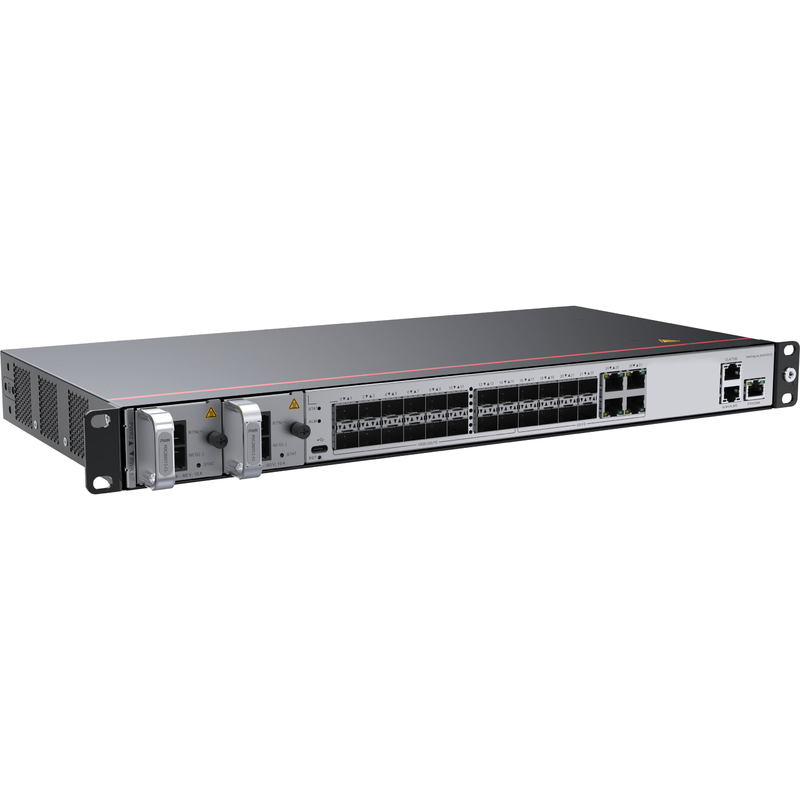

Model Number: Netengine 8000 M1C
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $1,450.00 - $2,920.00/pieces
Packaging Details: 1,Carton packing or wooden case packing according to customer requirements
2,Sufficient protective materials are added to the packing box to effectively prevent the product from being damaged due to turbulence during transportation.
Supply Ability: 1000 Carton/Cartons per Day
Type: |
Enterprise Router |
Use: |
ALL |
Network: |
Wireless Lan, Wired LAN, ONVIF, SDK, TCP |
Products Status: |
Stock |
Function: |
SNMP, VLAN Support |
WAN Ports: |
1 |
Weight (lb/kg) Fully Configured: |
5.2 Kg |
Throughput: |
1.44 Tbps |
Operating Temperature: |
32° To 104° F (0° To 40° C) |
Traffic Analysis: |
NetStream |
VLAN: |
Adding Access, Trunk, And Hybrid Interfaces To VLANs/Default VLAN |
Dimensions (H X W X D): |
44.45 Mm X 442 Mm X 220 Mm (1U, Fixed Box) |
Type: |
Enterprise Router |
Use: |
ALL |
Network: |
Wireless Lan, Wired LAN, ONVIF, SDK, TCP |
Products Status: |
Stock |
Function: |
SNMP, VLAN Support |
WAN Ports: |
1 |
Weight (lb/kg) Fully Configured: |
5.2 Kg |
Throughput: |
1.44 Tbps |
Operating Temperature: |
32° To 104° F (0° To 40° C) |
Traffic Analysis: |
NetStream |
VLAN: |
Adding Access, Trunk, And Hybrid Interfaces To VLANs/Default VLAN |
Dimensions (H X W X D): |
44.45 Mm X 442 Mm X 220 Mm (1U, Fixed Box) |
Parameter | NE8000 M1A | NE8000 M1C | NE8000 M1D | NE8000 M1D-B | NE8000 F1A |
Switching Capacity | 352 Gbit/s | 344 Gbit/s | 1760 Gbps | 368 Gbit/s | 2.4 Tbit/s |
Max. Capacity of a Board | Fixed-configuration router | Fixed- configuration router | Fixed- configuration router | Fixed- configuration router | Fixed-configuration router |
Capacity Density (G/U) | 176 | 172 | 880 | 184 | 1200 |
IPU | Fixed-configuration router | Fixed- configuration router | Fixed- configuration router | Fixed- configuration router | Fixed-configuration router |
SFU | Fixed-configuration router | Fixed- configuration router | Fixed- configuration router | Fixed- configuration router | Fixed-configuration router |
Processing Board/Subcard | Fixed-configuration router | Fixed- configuration router | Fixed- configuration router | Fixed- configuration router | Fixed-configuration router |
Power Supply Module | 2, 1+1 (DC) | 2, 1+1 | 2, 1+1 | 2, 1+1 | |
Fan Module | 3 (integrated) | 2 (integrated) | 3 | 3,2+1 |
