Product Details
Place of Origin: Guangdong, China
Brand Name: HW

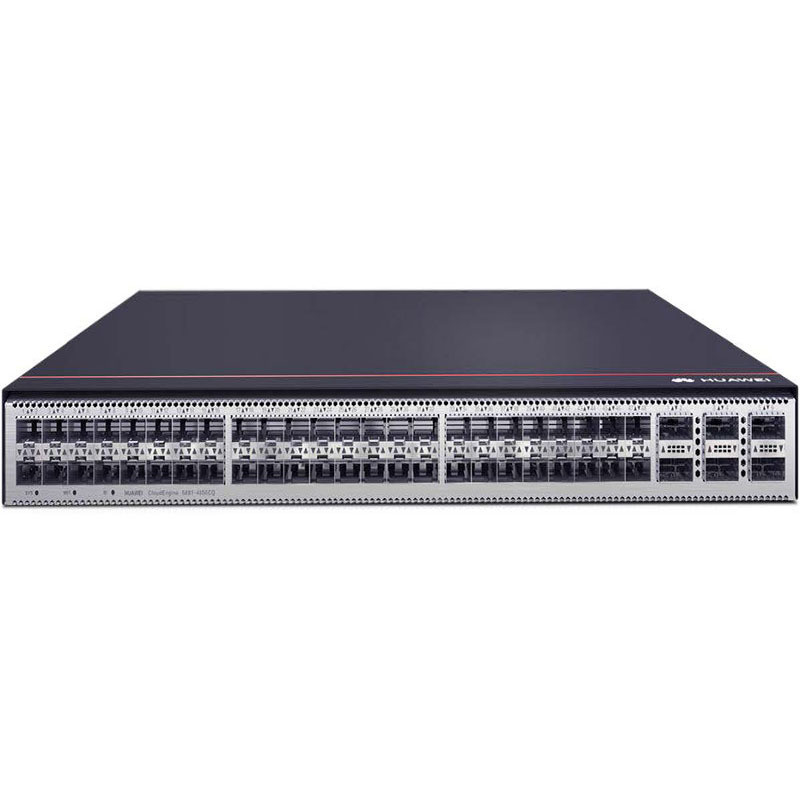

Model Number: CE6881-48S6CQ-B
Payment & Shipping Terms
Minimum Order Quantity: 2 pieces
Price: $2,166.00/pieces 2-9 pieces
Private Mold: |
NO |
Products Status: |
Stock |
Ports: |
≥ 48 |
Transmission Rate: |
10/100/1000Mbps |
Function: |
LACP, POE, QoS, SNMP, Stackable, VLAN Support, SNMP, VLAN Support |
Communication Mode: |
Half-Duplex |
Switch Capacity: |
2.16Tbit/s |
Device Virtualization: |
IStack/M-LAG |
Network Convergence: |
PFC And ECN/RDMA And RoCE (RoCEv1 And RoCEv2) |
Traffic Analysis: |
NetStream/sFlow |
ARP Table Size: |
256K |
Warranty: |
1 Years |
O&M: |
VXLAN Routing And Bridging BGP EVPN M-LAG DCBX PFC ETS |
Switching Capacity (Tbps): |
2.16 |
Forwarding Performance (Mpps): |
940 |
AC Output: |
220V AC |
Private Mold: |
NO |
Products Status: |
Stock |
Ports: |
≥ 48 |
Transmission Rate: |
10/100/1000Mbps |
Function: |
LACP, POE, QoS, SNMP, Stackable, VLAN Support, SNMP, VLAN Support |
Communication Mode: |
Half-Duplex |
Switch Capacity: |
2.16Tbit/s |
Device Virtualization: |
IStack/M-LAG |
Network Convergence: |
PFC And ECN/RDMA And RoCE (RoCEv1 And RoCEv2) |
Traffic Analysis: |
NetStream/sFlow |
ARP Table Size: |
256K |
Warranty: |
1 Years |
O&M: |
VXLAN Routing And Bridging BGP EVPN M-LAG DCBX PFC ETS |
Switching Capacity (Tbps): |
2.16 |
Forwarding Performance (Mpps): |
940 |
AC Output: |
220V AC |
Item | CloudEngine 6881- 48S6CQ | CloudEngine 6881- 48T6CQ | |||
Physical Features | Dimensions (W × D ×H, mm) | 442*420*43.6 | |||
Weight (excluding optical transceivers, power modules, and fan assemblies/ including AC power modules and fan assemblies, excluding optical transceivers, kg) | 5.7/7.8 | 6.5/8.5 | |||
Switching capacity (Tbps) | 2.16 | ||||
Forwarding performance (Mpps) | 940 | ||||
25GE SFP28 ports | 0 | 0 | |||
10GE SFP+ ports | 48 | 0 | |||
10GE BASE-T ports | 0 | 48 | |||
40/100GE QSFP28 ports | 6 | ||||
Management interface | Out-of-band management port | 1*GE management interface | |||
Console port | 1*RJ45 interface | ||||
USB port | 1 | ||||
CPU | Main frequency (HZ) | 1.4G | |||
Number of cores | 4 | ||||
Storage | RAM | 4GB | |||
NOR Flash | 64MB | ||||
NAND Flash | 4GB | ||||
System | System buffer | 42MB | |||
Power Supply System | Power modules | 600W AC | |||
1000W -48V DC 1200W 380V HVDC | |||||
Rated voltage range (V) | AC: 100V to 240V DC: -48V to -60V HVDC: 240V to 380V | ||||
Maximum voltage range (V) | AC: 90V to 290V DC: -38.4V to -72V HVDC: 190V to 400V | ||||
Maximum input current | AC 600W: 100V to 240V 8 A 1000W -48V DC: -48 to 60V 30A 1200W 380V HVDC: 190V 8A | ||||
Typical power | 194W (100% traffic load, copper cable, normal temperature, dual power modules) 240W (100% traffic load, short-distance optical transceivers, normal temperature, dual power modules) | 347 W (100% traffic load, 3 m network cables and copper cables, normal temperature, dual power modules) 362 W (100% traffic load, 3 m network cables and short- distance optical modules, normal temperature, dual power modules) | |||
Maximum power | 349W | 452W | |||
Frequency (AC, HZ) | 50/60 | 50/60 | |||
Heat Dissipation | Heat dissipation mode | Air cooling | |||
Number of fan trays | 4 | ||||
Heat dissipation airflow | Front-to-back or back-to-front airflow | ||||
Maximum heat consumption (BTU/hr) | 1191 | 1542 | |||
Environment specifications | Long-term operating temperature (°C) | 0°C to 40°C (0-1800m) The temperature decreases by 1°C each time the altitude increases by 220 m. | |||
Storage temperature (°C) | -40°C to +70°C | ||||
Relative humidity | 5% to 95% | ||||
Operating altitude (m) | Up to 5000 | ||||
Sound power at 27°C (dBA) | Front-to-back airflow: < 67 Back-to-front airflow: < 66 | Front-to-back airflow: < 68 Back-to-front airflow: < 67 | |||
Sound power at 40°C (dBA) | Front-to-back airflow: < 84 Back-to-front airflow: <83 | Front-to-back airflow: < 85 Back-to-front airflow: <84 | |||
Sound pressure at 27°C (dBA) | Front-to-back airflow: 53 in average (maximum: 58) Back-to-front airflow: 52 in average (maximum: 57) | Front-to-back airflow: 54 in average (maximum: 59) Back-to-front airflow: 53 in average (maximum: 58) | |||
Surge protection | AC power supply protection: 6 kV in common mode and 6 kV in differential mode DC power supply protection: 4 kV in common mode and 2 kV in differential mode | ||||
Reliability | MTBF (year) | 45.90 | 48.16 | ||
MTTR (hour) | 1.57 | 1.78 | |||
Availability | 0.9999960856 | 0.9999953209 | |||
Mainframe | ||
CE6881-48S6CQ | CE6881-48S6CQ switch (48*10G SFP+, 6*100G QSFP28, without fan and power modules) | |
CE6881-48S6CQ-B | CE6881-48S6CQ-B switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side intake) | |
CE6881-48S6CQ-F | CE6881-48S6CQ-F switch (48*10G SFP+, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) | |
CE6881-48T6CQ | CE6881-48T6CQ switch (48*10G RJ45, 6*100G QSFP28, without fan and power modules) | |
CE6881-48T6CQ-B | CE6881-48T6CQ-B switch(48*10GE RJ45,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side intake) | |
CE6881-48T6CQ-F | CE6881-48T6CQ-F switch (48*10G RJ45, 6*100G QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust) | |
