Product Details
Place of Origin: Guangdong, China
Brand Name: HW

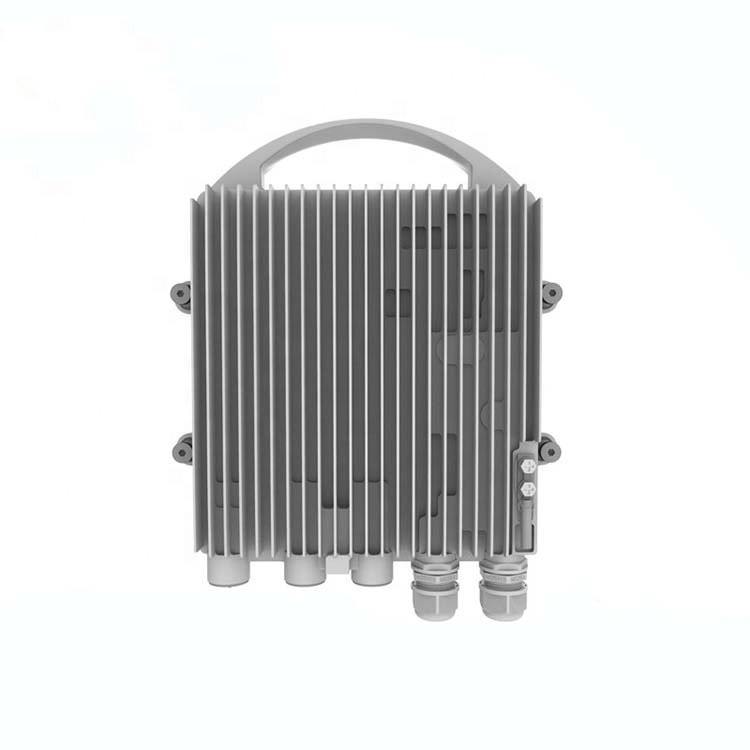

Model Number: RTN 380AX
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: $3,819.45/sets 2-19 sets
Packaging Details: 1,Carton packing or wooden case packing according to customer requirements
2,Sufficient protective materials are added to the packing box to effectively prevent the product from being damaged due to turbulence during transportation.
Supply Ability: 1000 Carton/Cartons per Day
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
IP Microwave |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
IP Microwave |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
Specifications | RTN 380A | RTN 380AX(DC+P&E) | RTN 380AXH | ||
Frequency | 71～76/81～86GHz | ||||
Channel Bandwidth | 62.5~/1000 MHz | 62.5~2000 MHz | 62.5~2000 MHz | ||
Max. Throughput | 7.5Gbps | 10Gbps | 10Gbps | ||
Modulations Schemes | BPSK~512QAM | BPSK~1024QAM | BPSK~1024QAM | ||
Service Interface | 2*10GE(SFP)+2*GEe | 3*10GE(SFP)+1*GEe | 4*10GE(SFP)+1*GEe | ||
Tx Power @QPSK | 18 dBm | 18 dBm | 26 dBm | ||
Super Dual Band | Yes | Yes | Yes | ||
L3 VPN | No | Yes | Yes | ||
eCPRI Support | Not support | Support 10G eCPRI | Support 10G eCPRI | ||
XPIC Support | Not support | Yes | Yes | ||
Power Consumption | 39W (typical) | 49W (typical) | 69W (typical) | ||
Dimensions | 265*285*73mm | 265*320*73 mm | 265*320*83 mm | ||
Power Supply | P&E | DC + P&E with Redundancy | DC + P&E with Redundancy | ||
