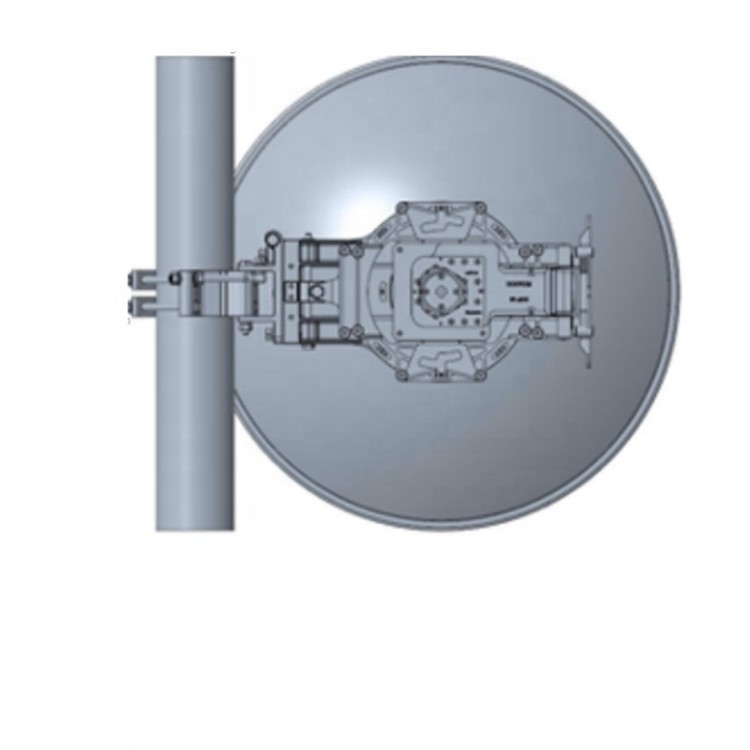

A13D12MS-3NX Microwave Antenna,A13D12MS-3NX,13G,1200mm,UHP-M,Dual Polarization,Separate Mount,42dBi,1.3deg,30dB,With English doc,C3
Product Details
Place of Origin: Guangdong, China
Brand Name: other
Model Number: A13D12MS-3NX
Payment & Shipping Terms
Minimum Order Quantity: 2 pairs
Price: $590.00/pairs 2-49 pairs
Packaging Details: Carton or wooden box
Supply Ability: 500 Carton/Cartons per Day
Type: |
Wireless Microwave Antenna |
Model: |
A13D12MAC-3NX |
Installation Method: |
Separate Microwave Antenna |
Frequency: |
13GHz |
Caliber: |
1200mm |
Producer: |
Chinese Mainland |
Antenna Gain: |
44.9dBi |
Weight: |
81kg |
Size: |
1300*1300*950 |
Attribute: |
Dual Polarized Antenna |
Type: |
Wireless Microwave Antenna |
Model: |
A13D12MAC-3NX |
Installation Method: |
Separate Microwave Antenna |
Frequency: |
13GHz |
Caliber: |
1200mm |
Producer: |
Chinese Mainland |
Antenna Gain: |
44.9dBi |
Weight: |
81kg |
Size: |
1300*1300*950 |
Attribute: |
Dual Polarized Antenna |
RTN980 IDU Basic unit | ||||||||
code | model | describe | ||||||
02313PLK | SLBMSITE107 | RTN 980 basic configuration unit dual main control (2 * SLB3CSHNU) with IDU installation accessories | ||||||
03024QLM | SL91ISM8 | Dual channel integrated multifunctional intermediate frequency board | ||||||
34060290 | eSFP(S)-1310nm-1000Base-Lx | Low speed optical module - eSFP-1310nm-1.25Gb/s --9dBm --3dBm --19dBm -- LC (-40~85) - single mode -10km | ||||||
34060599-002 | OSX010N09 | Integrated transceiver module,SFP+,1310nm,10.3125Gb/s,-8.2~0.5dBm,-14.4dBm,LC,SM,10km | ||||||
ODU RF processing unit (XMC-5D_13GHz) | ||||||||
52414320 | RTN XMC-5D 13G/13G | Microwave Outdoor Unit - RTN XMC-5D-13G/13G-2T2R-X135DLA-266266MHz Sub Band B, Sub Band B-Low site-H-Without doc-TX: 12863-12982/RX: 13129-13248, TX: 12863-12982/RX: 13129-13248MHz, WR-75/WR-75, H01/H01 | ||||||
52414321 | RTN XMC-5D 13G/13G | Microwave Outdoor Unit - RTN XMC-5D-13G/13G-2T2R-X135DHA-266266MHz Sub Band B, Sub Band B-High site-H Without doc TX: 13129 13248/RX: 12863 12982, TX: 13129 13248/RX: 12863-12982MHz, WR-75/WR-75, H01/H01 | ||||||
UHP Modular Multifrequency Antenna Dual Polarization Direct Buckle | ||||||||
52432957 | A13D15D18D18MB-3NX | Microwave antenna - A13D15D18D18MB-3NX-13-18G-1800mm-UHP-M Multi band Dual Polarization Basic Circular Waveguide-13G: 44.8dBi; 15G: 46.2dBi; 18G: 47.5dBi-30dB-With brackt with English doc without OMT, C3 | ||||||
Combiner unit | ||||||||
52432787 | A13D18MDD-3NX | A13D18MDD-3NX-13G-1800mm-UHP-M-Dual Polarization-Compact Mount-44.9dBi-0.9deg-30dB-With English doc-C3,For XMC-5D | ||||||
52443520 | MBF13&15&18-5D | Microwave Electrical Performance Accessories - Multi band Filter-12.75-13.25G&14.4-15.35G&17.7-19.7G-13G: 153IEC-R140&15:153IEC-R140&18G: 153IEC-R220 for UHP-M Multi band antenna and XMC-5D-With English doc | ||||||
