Product Details
Place of Origin: Guangdong, China
Brand Name: HW

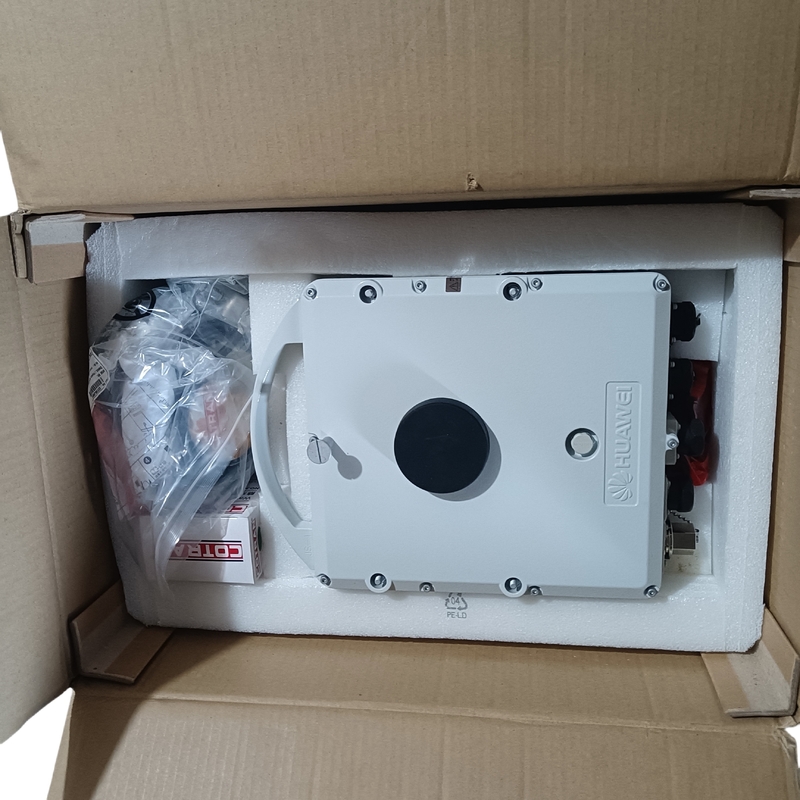

Model Number: RTN 320-F133LA
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: $1,360.00/sets >=2 sets
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
IP Microwave |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
Type: |
Other |
Use: |
Sea Surface, Land, Hills And Forests, Islands |
Warranty Time: |
1 Year |
Network: |
Wireless Lan, TCP, Ip, Wifi, IP Microwave |
Product Name: |
IP Microwave |
Frequency Band: |
6 ~ 42 GHz |
Channel Spacing: |
3.5/ 7/14/28/40/56/112 MHz |
Radio-frequency Direction: |
12 |
TDM Crossover Capacity: |
32*32 VC-4 |
Power Supply: |
-38.4 V~-57.6 V |
Network Layer: |
Suitable For: Access Layer And Aggregation Layer |
Channel Bandwidth: |
Determine Based On ODU Bandwidth |
Usage: |
Wireless Long-distance Transmission |
Feature: |
High Efficiency/High Performance |
|
Specifications
|
RTN 320
|
RTN 380AX(DC+P&E)
|
RTN 380AXH
|
||
|
Frequency
|
71～76/81～86GHz
|
|
|
||
|
Channel Bandwidth
|
62.5~/1000 MHz
|
62.5~2000 MHz
|
62.5~2000 MHz
|
||
|
Max. Throughput
|
7.5Gbps
|
10Gbps
|
10Gbps
|
||
|
Modulations Schemes
|
BPSK~512QAM
|
BPSK~1024QAM
|
BPSK~1024QAM
|
||
|
Service Interface
|
2*10GE(SFP)+2*GEe
|
3*10GE(SFP)+1*GEe
|
4*10GE(SFP)+1*GEe
|
||
|
Tx Power @QPSK
|
18 dBm
|
18 dBm
|
26 dBm
|
||
|
Super Dual Band
|
Yes
|
Yes
|
Yes
|
||
|
L3 VPN
|
No
|
Yes
|
Yes
|
||
|
eCPRI Support
|
Not support
|
Support 10G eCPRI
|
Support 10G eCPRI
|
||
|
XPIC Support
|
Not support
|
Yes
|
Yes
|
||
|
Power Consumption
|
39W (typical)
|
49W (typical)
|
69W (typical)
|
||
|
Dimensions
|
265*285*73mm
|
265*320*73 mm
|
265*320*83 mm
|
||
|
Power Supply
|
P&E
|
DC + P&E with Redundancy
|
DC + P&E with Redundancy
|
||
